TECHNICAL DATA
System:

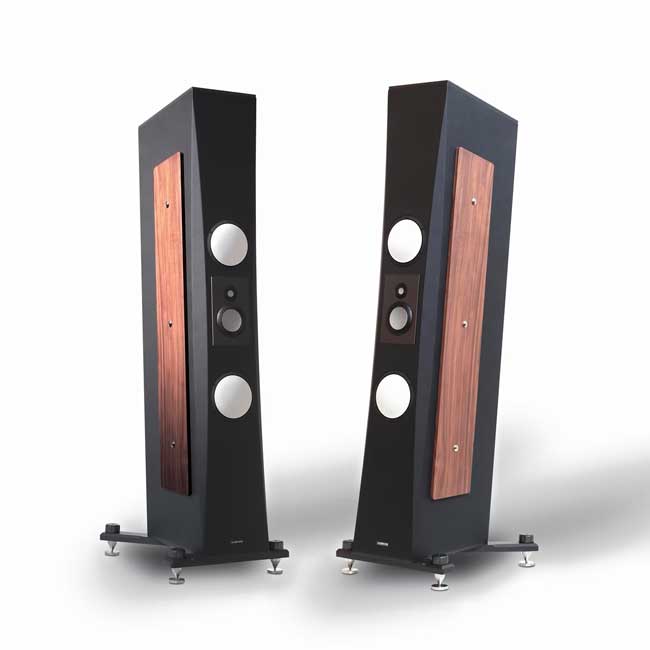

3-way floorstanding tower
Loading:
mirrored twin transmission line filtered by resonators (Helmholine System)
Drivers:
2x 8” Aluminum Sandwich Woofers
1x 5" Ceramic Midrange
1x 1’’ Diamond Tweeter
Crossover Filters:
acoustic second order, handcrafted only with Mundorf Components
Crossover Frequencies:
300Hz & 3.0kHz
Sensitivity:
86 dB (2.83V 1m)
Nominal impedance:
8 ohm
Frequency response:
33 - 25.000 Hz
Dimensions:
28.2 x 50.5 x 183.6 cm (11.10 x 19.88 x 72.28 inch)
Weight:
170 kg (375 lb) net each
