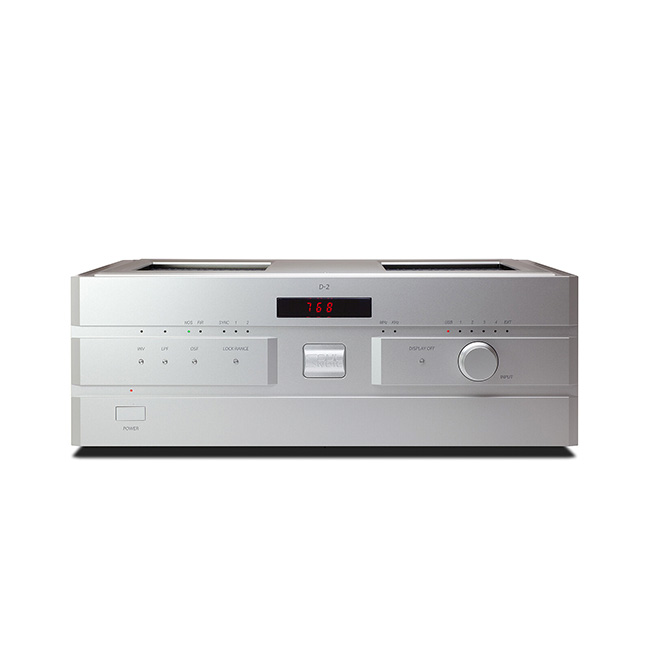

Model: D-2 VER2 SF (Premium Silver) / D-2 VER2 BF (Premium Black)
Input format: USB: PCM, DSD (DoP v1.1, ASIO native), Coaxial, AES/EBU: PCM, DSD (DoP v1.1)
Supported sampling frequencies: USB: Max. 768 kHz (PCM) / Max. 22,6 MHz (DSD), Coaxial, AES/EBU: Max. 192 kHz (PCM) / 2,8 MHz (DSD64, DoP v1.1)
PCM quantization bit rate: USB: 16 Bit / 24 Bit / 32 Bit, Coaxial, AES/EBU: 16 Bit / 24 Bit
Digital input: USB (Type B), 2x Coaxial (S/PDIF), 2x AES/EBU
External clock input: 10 MHz (SMA, 50 Ω)
Analog output: 1× Balanced, 1× Unbalanced
Analog output level: Balanced: 6,2 Vrms, Unbalanced: 3,1 Vrms
Frequency characteristic: 2 Hz to 120 kHz (+0/-1 dB）
S/N: 110 dB
Total harmonic distortion: 0,04 % (NOS / 44,1 kHz)
Analog filter: 1st-dimensional passive
Dimensions: 430(W) × 160(H) × 405(D) mm
Weight: approx. 17.0 kg
Included Accessories: Spikes, Power cable
