Speaker Type

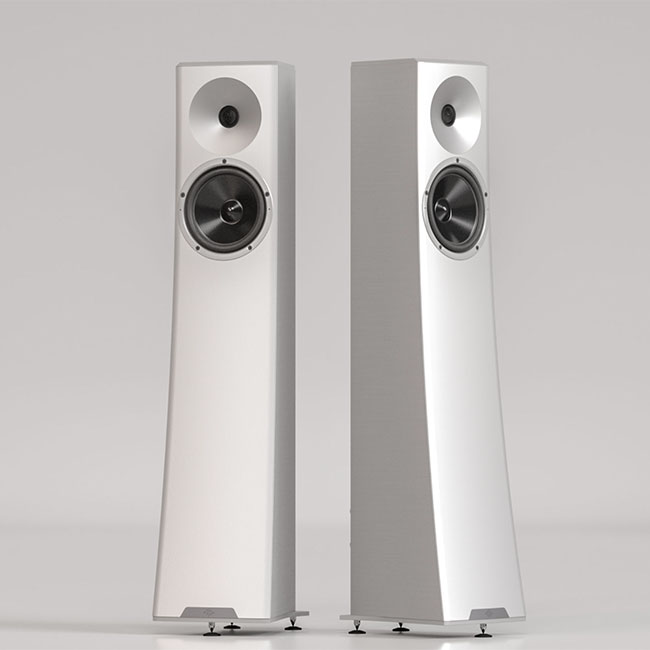

2-way passive floor-standing loudspeaker
Drivers
26 mm (1”) proprietary YG Lattice hybrid tweeter with advanced airframe
18.5 cm (7.25”) proprietary YG aluminum cone midbass driver with advanced neodymium motor magnets
Crossover
Ultracoherent circuit with crossover at 1.75 kHz
Exceptional phase alignment: ±5° relative phase between drivers from 700 Hz to 3.3 kHz, covering entire range where driver relative output is within 25 dB
Optimized for phase alignment, phase slope and transient response
Custom capacitors including pure metal foil models
Advanced resistors including foil resistors for exceptional imaging and transient response
Advanced resonance-damped inductors
Computationally optimized layouts to minimize component interactions
Response
Usable output extends from 32 Hz to 40 kHz
Exceptionally low distortion throughout range
Excellent pair matching
Sensitivity
87 dB
Impedance
6 Ohms average
3.2 Ohms minimum
Dimensions
103 × 23 × 31 cm (H × W × D)
41 × 9 × 13” (H × W × D)
Weight
39 kg per speaker
85 lbs per speaker
Finishes
Standard finishes are silver and black
Please contact your dealer for other finish options
