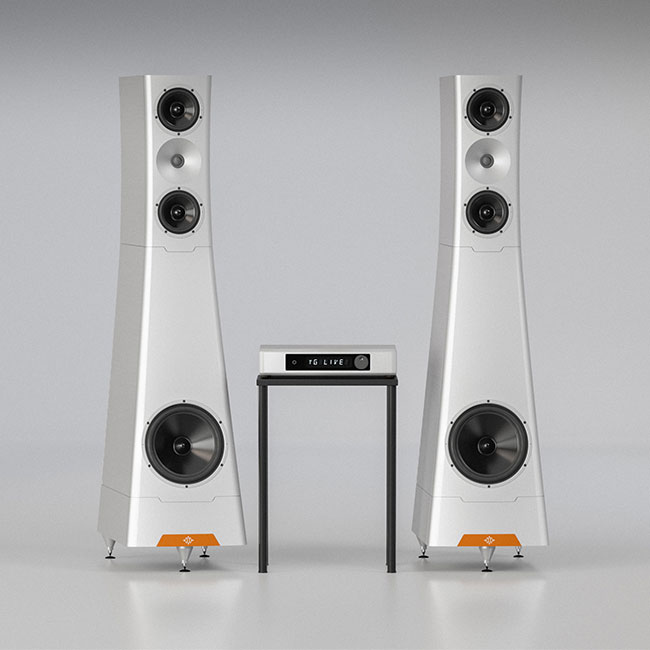

SPEAKER TYPE
3-way DSP active loudspeaker with controller supporting analog, digital, phono and Roon Ready streaming inputs
DRIVERS
26 mm (1”) proprietary YG Lattice hybrid tweeter with advanced airframe
Dual 15 cm (6”) proprietary YG aluminum cone midrange drivers with advanced neodymium motor magnets
26 cm (10.25”) proprietary YG aluminum cone bass drivers with ultra-high field strength motor
AMPLIFIER
Dedicated 700 W amp per drive unit = 2.8 kW per channel
0.0006% THD+N 20 Hz to 20 kHz at half peak power
137 dB SNR unweighted ref. peak power
93% efficiency at peak power
250 μΩ output impedance
RESPONSE
Usable output extends from 20 Hz to 40 kHz
Exceptionally low distortion throughout range
CROSSOVER
Advanced DSP crossover optimized using supercomputer and cloud computing, then tuned across thousands of hours of critical listening. Exceptional phase, amplitude and impulse accuracy response at all volume levels.
DIGITAL INPUTS
AES (XLR), SPDIF (BNC), TOSLINK, USB, Ethernet AES, SPDIF, TOSLINK: 24 bit up to 192 KS/s
Ethernet: 24 bits to 192 KS/s and DSD64
USB2 Audio: 24 bits to 384 KS/s and DSD64/128 (DoP)
ANALOG INPUTS
2 × Line inputs RCA
Maximum input: 2.2 Vrms
Input Impedance: 10 kΩ
PHONO INPUT
Sensitivity: MM: 2.5 mV to 5 mV; MC: 0.25 mV to 0.5 mV
Input load: MM: 47 kΩ; MC: 50 Ω, 100 Ω, 500 Ω, 1 kΩ
RIAA Accuracy: +/-0.25 dB, 50 Hz – 15 kHz
THD+N: <0.01% 1 kHz A-weighted SNR: >70 dB A-weighted
SNR: >70 dB A-weighted
GENERAL
Controller: 94 × 400 × 316 mm [3.7 × 15.7 × 12.4”] H × W × D
Controller weight: 8.7 kg [19.2lbs] unpacked
Speaker: 148 × 35 × 64 cm [58 × 14 × 25”] H × W × D
Speaker weight: 120 kg [264 lbs] per channel unpackaged
FINISHES
Standard finishes are silver and black
Please contact your dealer for other finish options
