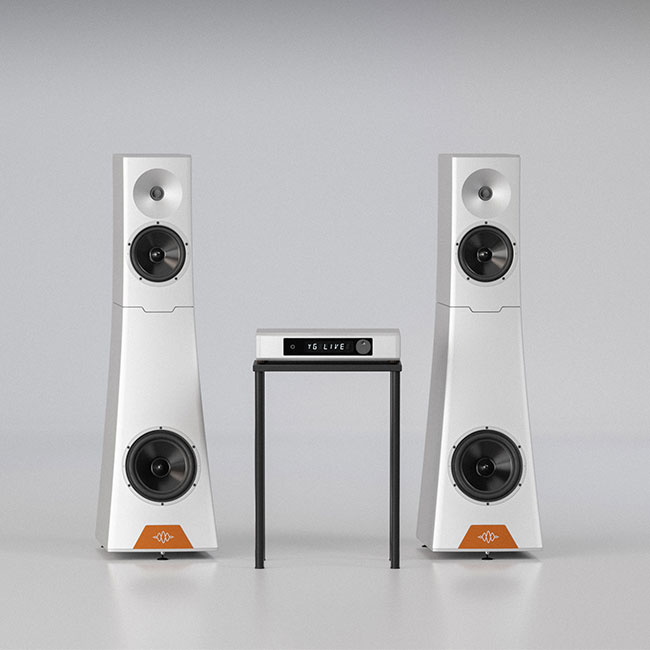

Vantage 3 Live is a unique product: a complete system delivering stunning audio quality combined with exceptional convenience and flexibility.
Vantage 3 Live will have you re-listening to all your favorite recordings, enjoying its unrivaled dynamics and scale, breathtaking detail and delicacy. Most of all, it has a musical, natural sound with all types of music, whether recreating an intimate acoustic recording or the spine-tingling, electric atmosphere of a rock concert.
Speaker Type
3-way DSP active loudspeaker with preamp controller supporting analog, digital, phono and Roon Ready streaming inputs
Drivers
26 mm (1”) proprietary YG Lattice hybrid tweeter with advanced airframe
18.5 cm (7.25”) proprietary YG aluminum cone midrange driver with advanced neodymium motor magnets
22 cm (8.75”) proprietary YG aluminum cone bass driver with ultra-high field strength motor
Response
Usable output extends from 26 Hz to 40 kHz
Exceptionally low distortion throughout range
Crossover
Advanced DSP crossover optimized using supercomputer and cloud computing resources, then tuned across thousands of hours of critical listening. Exceptional phase, amplitude and impulse accuracy response at all volume levels.
Amplifier
Dedicated 700 W amp per drive unit = 2.1 kW per channel
0.0006% THD+N 20 Hz to 20 kHz at half peak power
137 dB SNR unweighted ref. peak power
93% efficiency at peak power
250 μΩ output impedance
Digital Inputs
AES (XLR)
SPDIF (BNC)
TOSLINK
USB
Ethernet
AES
SPDIF
TOSLINK: 24bit up to 192KS/s
Ethernet: 24bits to 192KS/s and DSD64
USB2 Audio: 24bits to 384KS/s
DSD64/128 (DoP)
Analog Inputs
2 × Line inputs RCA
Maximum input: 2.2 Vrms
Input Impedance: 10kΩ
Phono Input
Sensitivity: MM: 2.5mV to 5mV; MC: 0.25mV to 0.5mV
Input load: MM: 47kΩ; MC: 50Ω, 100Ω, 500Ω, 1kΩ
RIAA Accuracy: +/-0.25dB, 50Hz – 15kHz
THD+N: <0.01% 1kHz A-weighted SNR: >70dB A-weighted
General
Controller: 94 × 400 × 316 mm (3.7 × 15.7 × 12.4”) H×W×D
Controller weight: 8.7kg (19.2lbs)
Speaker dimensions: 112 × 32 × 54 cm (44 × 13 × 21”) H×W×D
Speaker weight: 80 kg (176 lbs) per channel unpackaged
Finishes
Standard finishes are silver and black
Please contact your dealer for other finish options
