Speaker Type

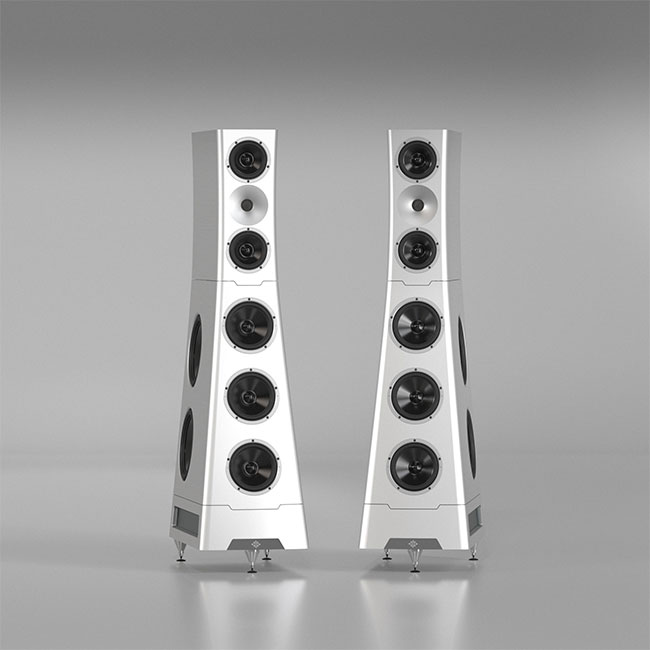

4-way passive floor-standing loudspeaker
Three-layer and five-layer, aerospace aluminum cabinet with constrained layer damping
Drivers
26 mm (1”) proprietary YG Lattice hybrid tweeter with advanced airframe
Dual 15 cm (6”) proprietary YG aluminum cone midrange drivers with advanced neodymium motor magnets
Triple 18.5 cm (7.25”) proprietary YG aluminum cone midbass drivers with advanced neodymium motor magnets
Dual 28 cm (11”) proprietary YG aluminum cone bass drivers with ultra-high field strength motors
Crossover
Ultracoherent crossovers at 90 Hz, 360 Hz and 1.85 kHz
Exceptional phase alignment over very wide frequency range around crossover point
Optimized for frequency response, phase alignment, phase slope and transient response
Silver gold alloy capacitors
Custom capacitors including pure metal foil models
Advanced resistors including multiple foil resistors
Advanced resonance-damped inductors
Computationally optimised layouts to minimise component interactions
Custom, anti-resonance PCB with low dielectric constant and dissipation factor
Response
Usable output extends from below 20 Hz to 40 kHz
Exceptionally low distortion throughout range
Excellent pair matching
Sensitivity
88 dB
Impedance
4 Ohms average
2.8 Ohms minimum
Dimensions
148 × 35 × 64 cm (H × W × D)
58 × 14 × 25” (H × W × D)
Weight
170 kg per speaker
374 lbs per speaker
Finishes
Standard finishes are silver and black
Please contact your dealer for other finish options
